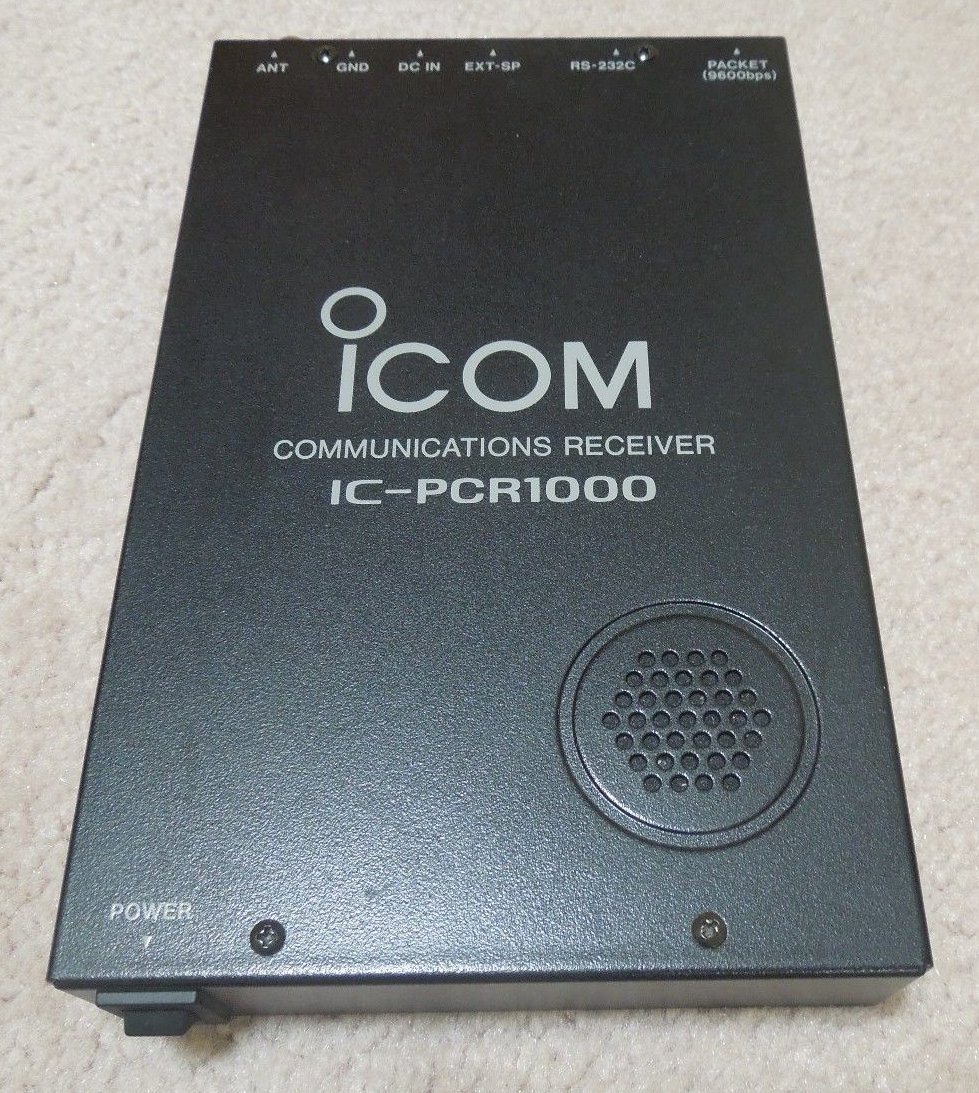

Icom IC-PCR1000
| Type:
|
Computer controlled HF/VHF/UHF Receiver/Scanner |
| Frequency Range: |
0.1-1300 MHz |
| Modes: |
AM/FM/WFM/SSB/CW |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
Max 700 mA |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
128*30*199 mm |
| Weight: |
1 Kg |
| Manufactured: |
199x-19xx |
| Other: |
DSP option |
| Related Documents: |

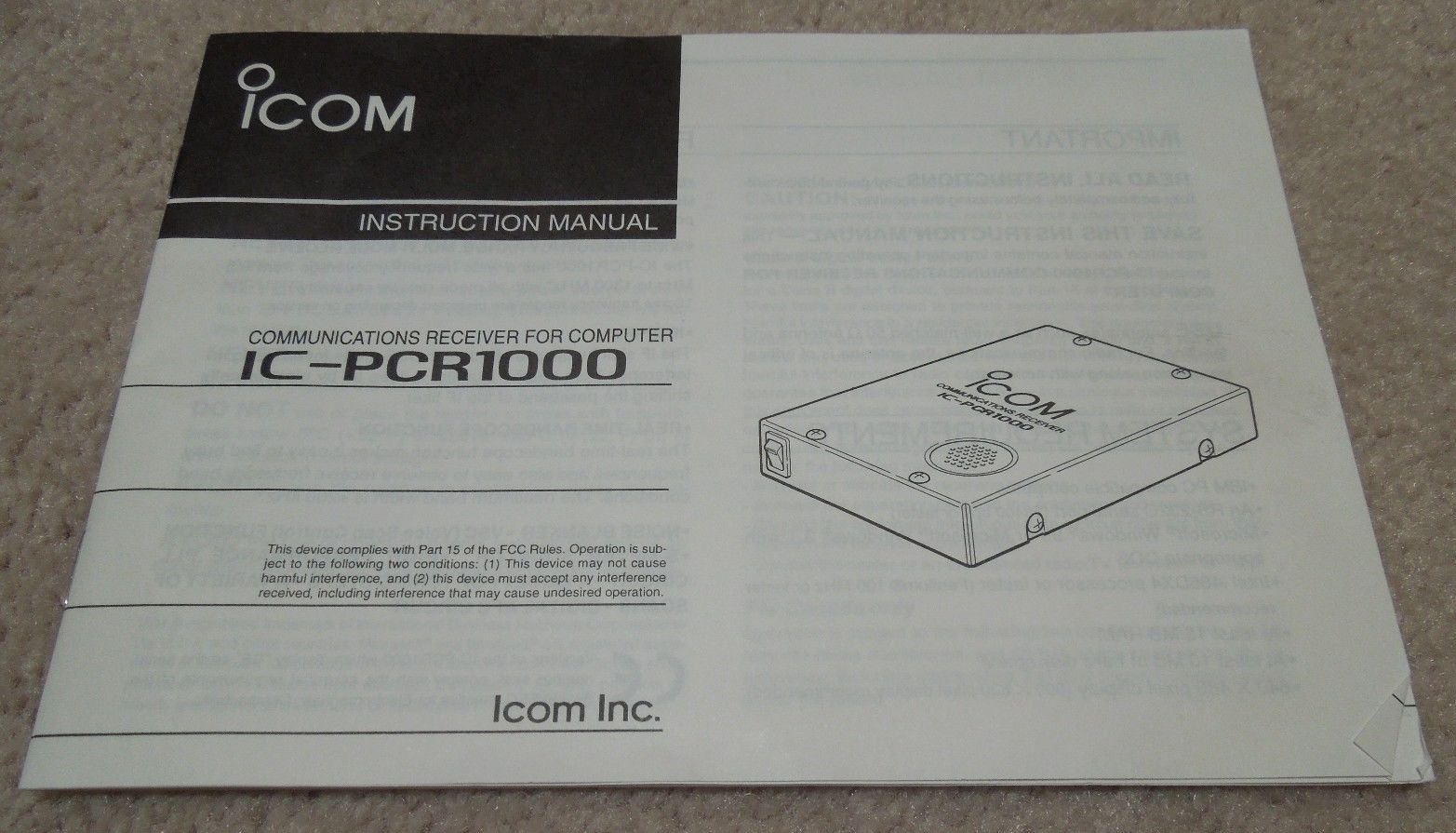

User Manual (146 KB)(60 pages)
User Manual (698 KB)(20 pages)
User Manual (213 KB)(16 pages)
Service Manual (17.7 MB)
Schematic (892 Kb) |
PC Display:
 |
